Humat Inc. is the creator and manufacturer of the Humat 4-way Hydrant Valve, used by innovative fire departments and fire training schools across the USA and around the world as the most efficient method to get the most water on the fire ground in the least amount of time.
Valves are made of lightweight aluminum alloy for easy handling, heat treated for extra strength and hard coated to prevent corrosion and to increase surface strength. Incredibly durable and designed for ease-of-use, Humat valves provide an exceptional return-on-investment to fire departments regardless of size.
|
Toll-free in the US 1.800.638.2079 International +1.410.879.1470 Fax 1.410.836.5138
|
Training & Support
Documents
Keep in mind that the Humat 4-way Hydrant Valve is the simplest-to-use and maintain appliance available today. These operating hints (PDF) and maintenance procedures (PDF) are to help those of you who must write your department's technical directives.
Valve Deployment

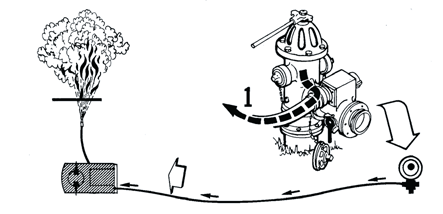

First engine drops pre-connected valve at the hydrant and stretches line to the fire. Valve is connected to the hydrant, smaller chamber is positioned up or down depending on location of fire and hydrant is opened.

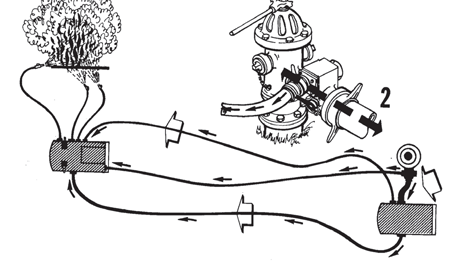

Second engine lays two lines from fire to hydrant, connects sleeve to valve to supply those lines through the pump.

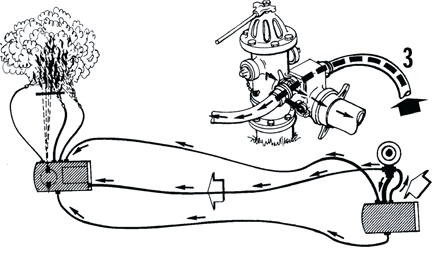

Line is connected from pump discharge valve to bring initial supply line up to pump pressure.
|
Humat has for your use, a photo slide
show & manuscript CD and a demo &
training DVD at no charge.
Please click the link below to access
the contact us page.
Contact us

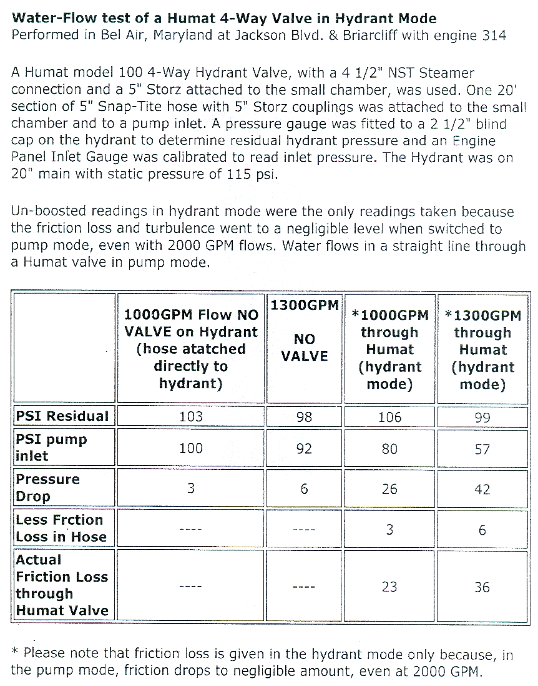

A Humat model 100 4-Way Hydrant Valve, with a 4 1/2" NST Steamer connection and a 5" Storz attached to the small
chamber was used. One 20' section of 5" Snap-Tite hose with 5" Storz couplings was attached to the small chamber and to
the pump inlet. A pressure gauge was fitted to a 2 1/2" blind cap on the hydrant to determine residual hydrant pressure and
an Engine Panel Inlet Gauge was calibrated to read inlet pressure. The hydrant was on 20" main with static pressure of 115
PSI.
Un-boosted readings in hydrant mode were the only readings taken because the friction loss and turbulence went to a
negligible level when switched to pump mode, even with 2000 GPM flows. Water flows in a straight line through a Humat
Valve in pump mode.
1000 GPM Flow 1300 GPM 1000 GPM * 1300 GPM*
No Valve on Hydrant No Valve thru Humat thru Humat
( hose attached directly ( hydrant mode) ( hydrant mode)
to hydrant)
PSI Residual 103 98 106 99
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PSI Pump 100 92 80 57
Inlet
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Pressure 3 6 26 42
Drop
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Less Friction ----- ---- 3 6
Loss in Hose
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Actual Friction ---- ---- 23 36
Loss thru
Humat Valve
* Please note that friction loss is given in the hydrant mode only, because, in the pump mode, friction drops to negligible
amount, even at 2000 GPM.
